Control System Studio
Control System Studio is a collection of tools and applications to monitor and operate large scale control systems, such as the ones in the accelerator community.
The original implementation of CS-Studio is based on the eclipse RCP framework which provided a extensible and pluggable architecture. Phoebus is a pure java/javafx based implementation which uses java feature like SPI and modules to provide the same extensible and modular achitecture.
The CS-Studio and Phoebus products are developed and maintained by a collaboration between many laboratories and universities.
EASILY INTEGRATES WITH YOUR CONTROL SYSTEM

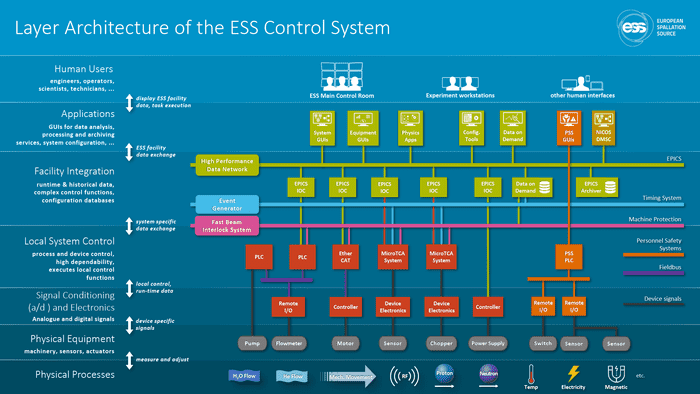

With an extensible data connection layer it is possible to use CS-Studio & Phoebus with multiple control systems and data sources. Currently, the community supports the EPICS channel access and pvAccess protocols along with MQTT. The use of well defined SPI's allows for CS-Studio applications can be used with a multiple site specific services.
QUALITY USER INTERFACES

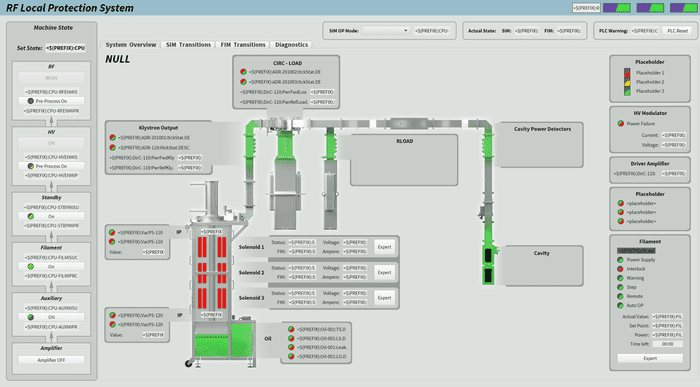

A WYSIWYG editor make is possible to develop production quality controls and monitoring user interfaces easily. The CS-Studio & Phoebus frameworks provide support for developing multi threading applications along with providing features like rate limiting and aggregation ensuring performance and scalablity of user developed screens.

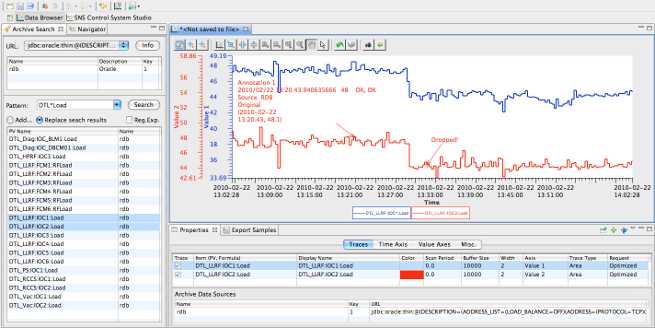

THE POWERFUL DATABROWSER
The Databrowser is a trending tool. It aggregates live and archived data to plot values over a user-defined time range. Databrowser plots may be created from any OPI visual component associated with a control system process value (PV). Additional features include extensive plot styling capabilities as well as import/export of data in several formats.
